AUTOMATION SERIES
CUSTOM
LASER AUTOMATION
Integrated automation solutions for demanding production lines – from robot integration to the fully automated complete system.
AUTOMATION Series
Our AUTOMATION systems for integrated production processes
All systems in the AUTOMATION product line are individually configured for your production line. From the design phase onwards, our engineers work closely with your team to develop the optimal automation solution.
Whether as an integrated robot cell or as a fully integrated production line: we implement your automation requirements together with you.
Project examples
Der Entstehungsweg einer kundenspezifischen Lösung
Swipe for more project examples
Project Example 01
Automated fiber laser marking system
Metal valves and fittings are automatically marked with a logo as well as production and batch data. The system covers different component geometries in a single line.
Customer requirements
The customer manufactures a wide range of metal valves and fittings that need to be marked both with a logo and individually with a production/batch number.
Depending on production volume, marking is carried out on stand-alone marking stations that are loaded manually. For productivity reasons, assemblies with higher quantities have to be processed automatically, which is why an AUTOMATION solution is required.
Implementation concept
A sensor-based position detection system was set up for the different geometries, transferring marking information to the laser system in real time.
- The components have different geometries and distinctive features that determine the position and size of the marking.
- Cameras and other optical sensors are used to detect the actual position of the geometries and pass this information on to the laser systems.

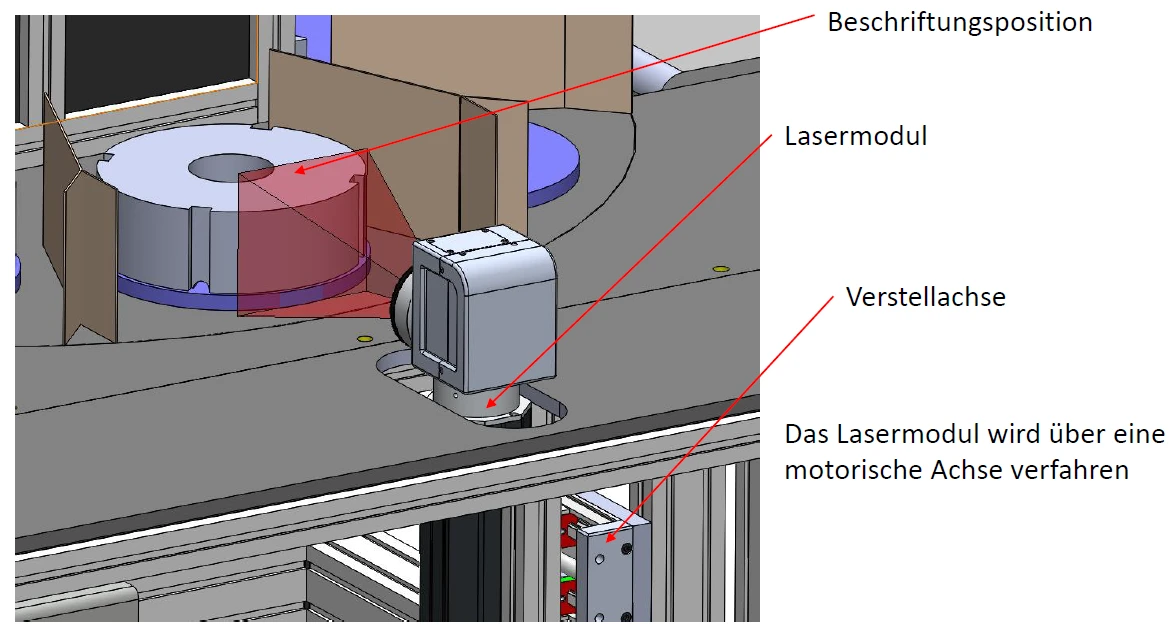

- Based on the transferred production information and sensor signals, the fiber laser system applies the marking.
Machine design

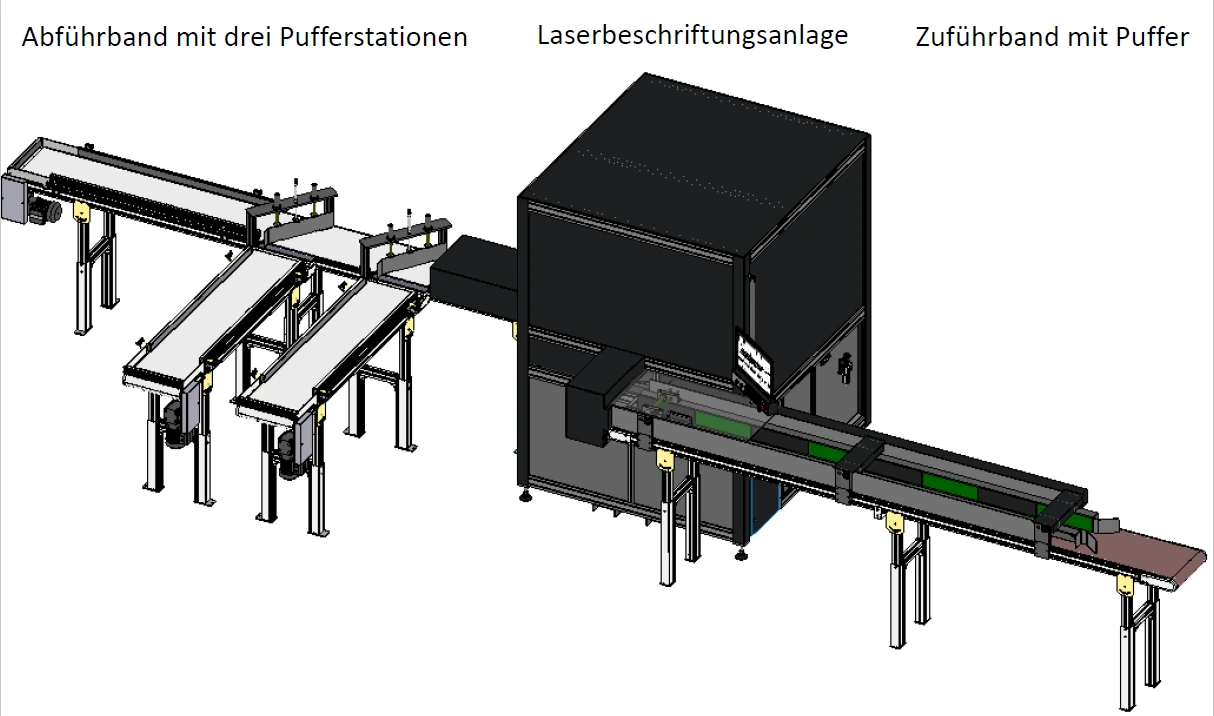

Once all technical details have been clarified, the system design is finalized and the system is integrated on site at the customer's facility.
Key Facts
- Process
- Fiber laser marking
- Components
- Metal valves and fittings
- Automation

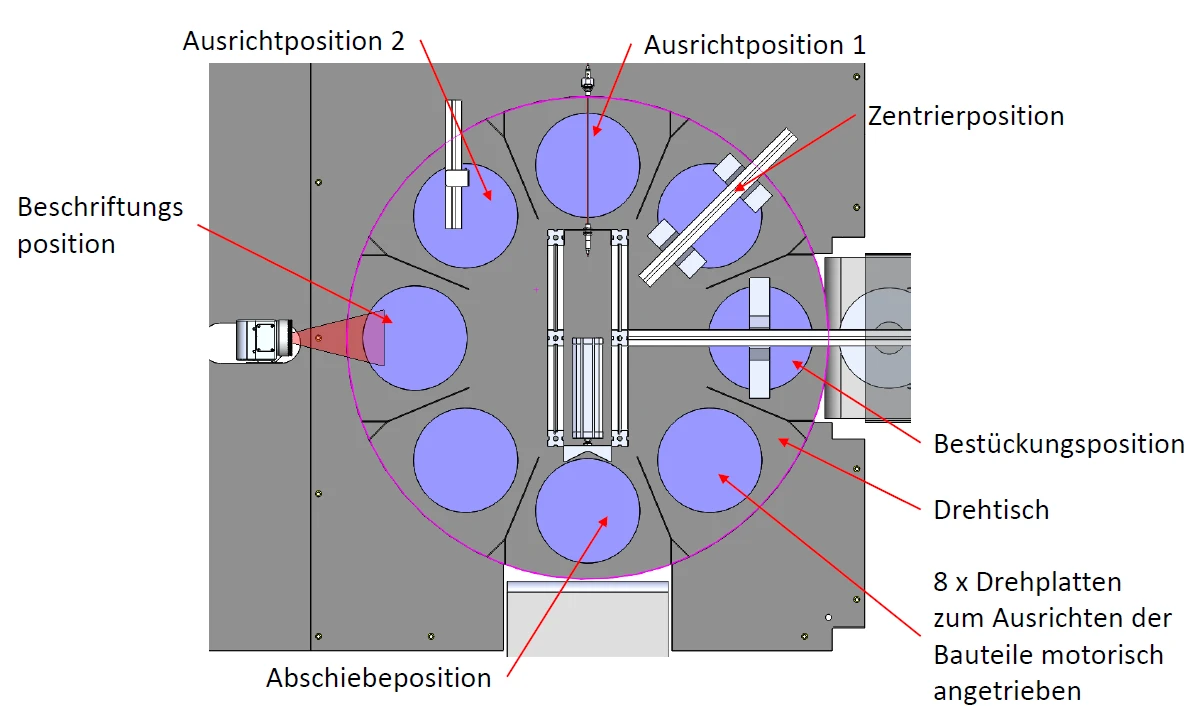

- Grippers, turntable, rotary axes, discharge conveyor
Do you have a similar application? We will work out the right solution with you.

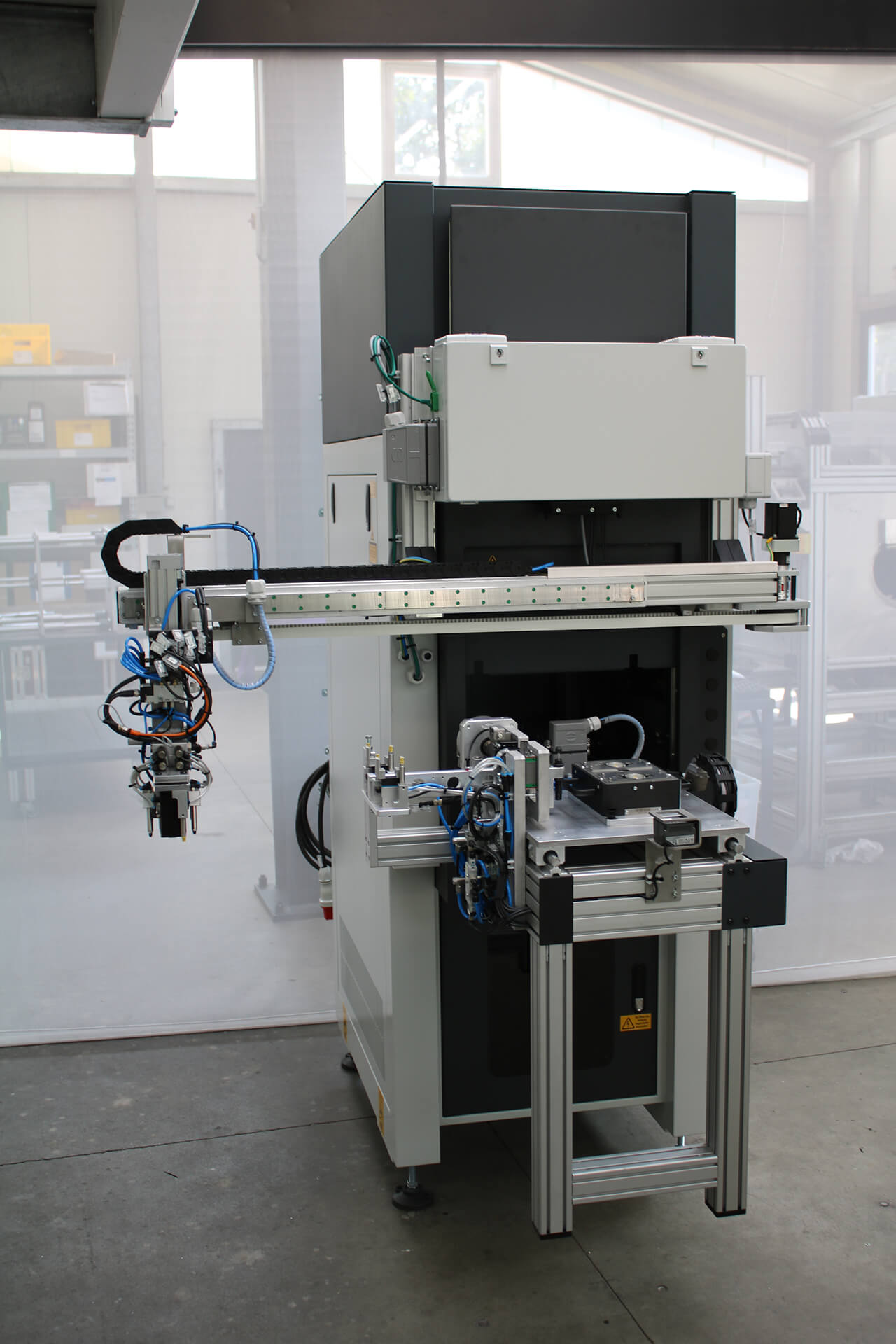

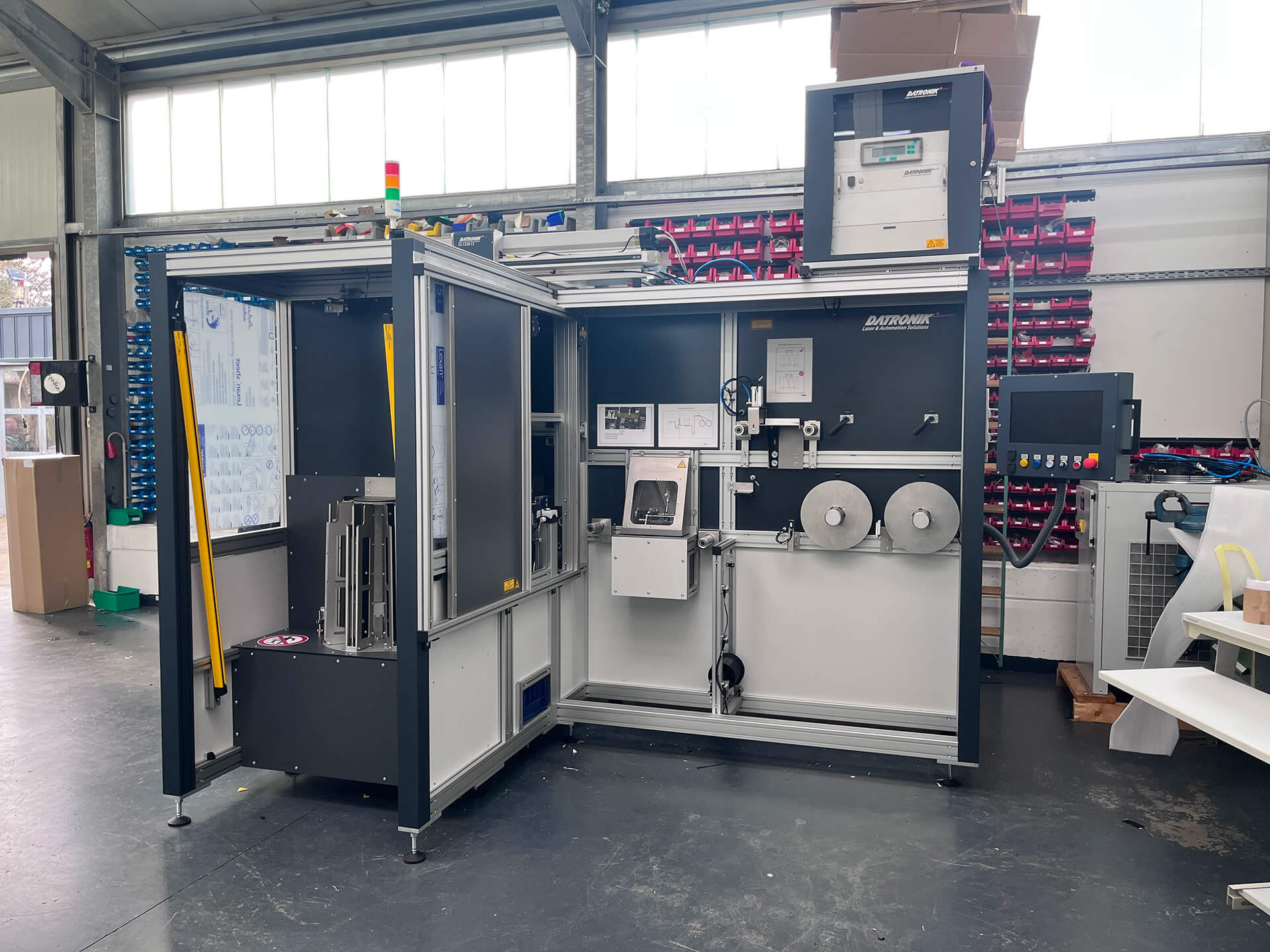

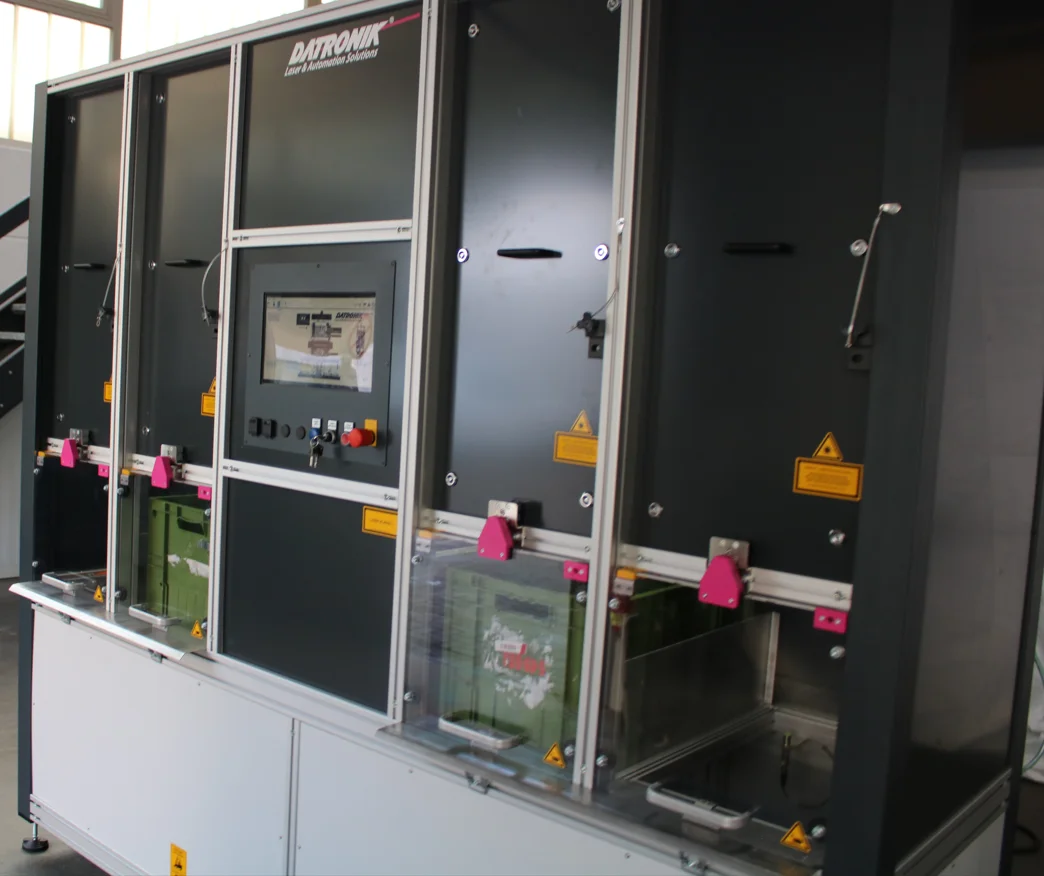

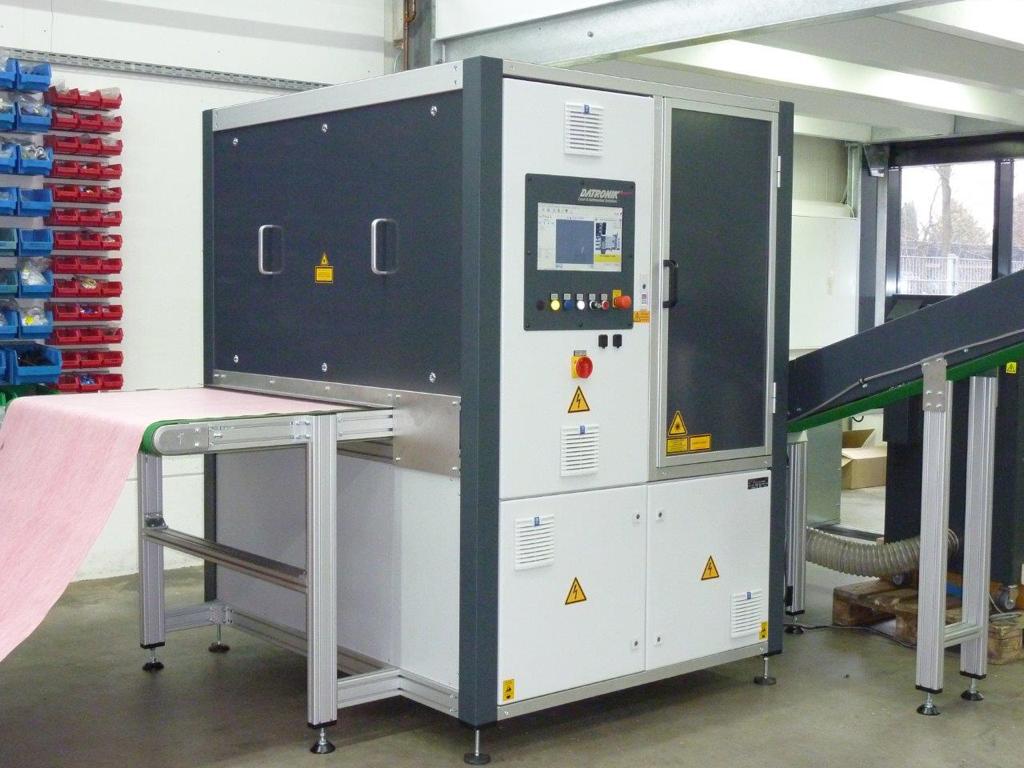

System images
Example system images
Selected images of our AUTOMATION systems – from robot integration to the fully automated production line.
Let's talk about your automation
Every production environment is unique. In a personal consultation, our sales engineers analyse your specific requirements and advise you on the right AUTOMATION solution.
